Adative Curved Layer Slicer

View source on GitHub

A MATLAB application that processes 3D models for Fused Deposition Modelling (FDM) printing. The software demonstrates two slicing approaches - adaptive and curved layer slicing - providing an intuitive step-by-step workflow with real-time visualisation and layer-by-layer animation preview.

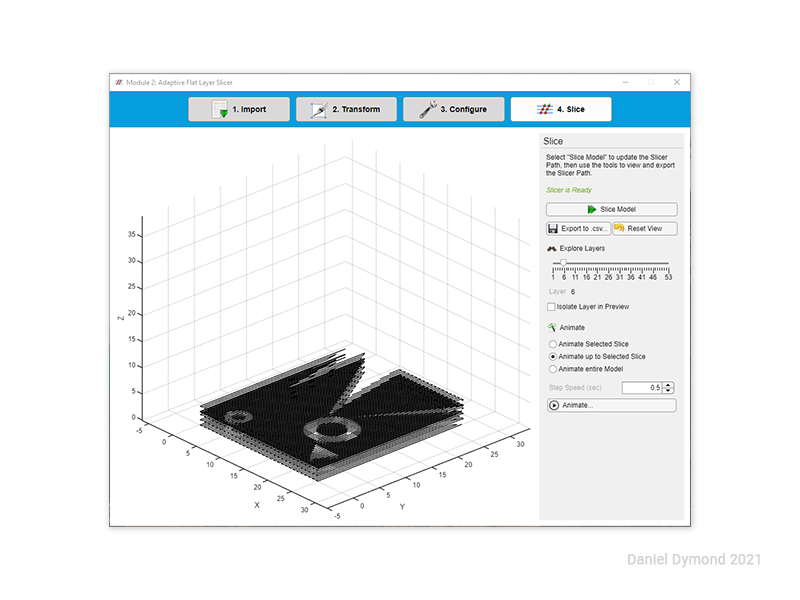

Adaptive Layer Slicing

Provides optimisation between print time and surface quality.

• Imports standard .stl files
• Transform the orientation or scale of models prior to slicing
• Automatically adjusts layer heights based on model geometry
• Optimises for steep angles and fine details
  • Reduce “staircase effect” on slopes
  • Preserves small features that uniform slicing can miss
• Generates infill using a zig-zag pattern
• Exports a .csv containing cartesian coordinates

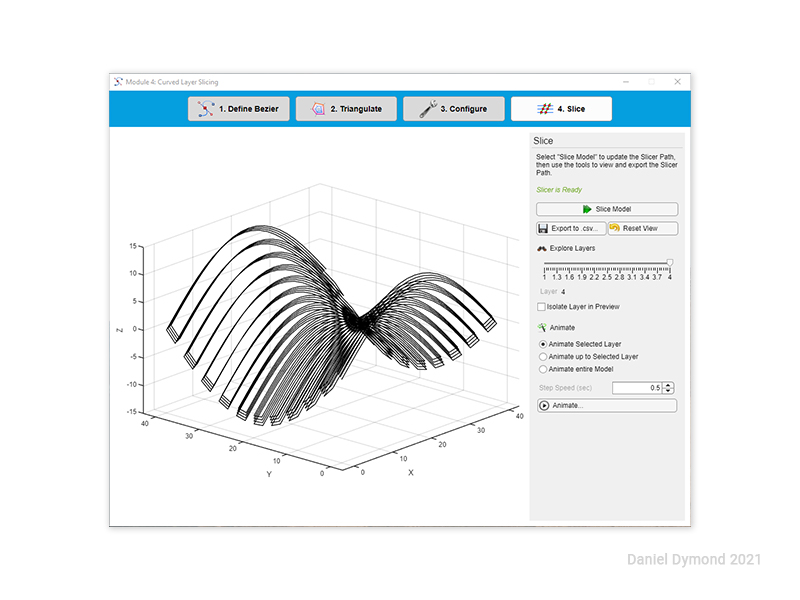

Curved Layer Slicing

Demonstrates a novel slicing approach which produces Bezier surfaces.

• Imports a Bezier surface defined as a n * n * n matrix
• Creates compound layers of uniform thickness by creating a normalised vector to the surface
• Enables advanced geometric possibilities beyond traditional flat layers

Project Details

• Written in MATLAB using custom algorithms for geometry processing, path planning, and rasterisation.
• Incorporates research findings from Auckland University of Technology School of Engineering.
• In collaboration with Holly Butson, Patrick Rosaria and Taja Canlas.
